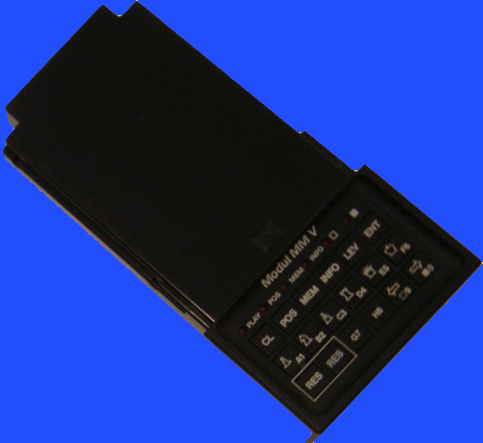

Mephisto MM V (1990) Electronic Chess Module suitable for Mephisto Modular Chess Board Systems

MEPHISTO MM V uses an 8 bit 6502 microprocessor running at a speed of 4.9152 MHz with 32 KB ROM available for the program and its functions. 8 KB RAM is used for the program's game memory. The built-in opening book comprises of approximately 500 variations. The HG 550 openings module works with the MM V. This module increases the openings library to 20,000 half-moves (ply)in 8,000 variations.

The program was written Dutch programmer Ed Schroeder.



Mephisto MM IV chess game module playing inside a Mephisto Muenchen Magnet-Sensory Board.

Mephisto MM IV chess game module playing inside a Mephisto Muenchen Magnet-Sensory Board.

Board Name

Board Type

Compatible

Mephisto Bavaria

Hardwood Tournament Size

No

Exclusive

Hardwood Table Top

Yes

Mirage Modular Board

Plastic Table Top

No

Mobil with built-in Display

Plastic Travel

Yes

Mobil with no Display

Plastic Travel

No

Mephisto Modular Board

Plastic Table Top

Yes

Mephisto Muenchen

Hardwood Tournament Size

Yes

MEPHISTO MM V MODULAR BOARD COMPATIBILITY CHART:

a_button_2_51
Mephisto MM V (1990) Electronic Chess Module suitable for Mephisto Modular Chess Board Systems

Technical Specification

Mephisto MM V (1990) Chess Game Module

Mephisto MM V (1990) 18 Button Control
Mephisto MM V (1990) Show Module
Mephisto MM V (1990) inside Mobil Electronic Travel Chess Unit

18 Button Control

Show Module

Mobil Travel

Spacious Mind

Schachcomputer.Info

Active 2017

Tourn. 2015

2005

1982

T1

T2

T3

T4

T5

Final

-

-

-

-

-

-

MANUFACTURER

PROGRAMMER

Hegener + Glaser

Ed Schroeder

2050 German

1990

$295.00

1974

Year:

MFR ELO:

Original Price:

Origin. Wiki ELO:

Model #:

-

My Serial #:

0791683

Processor OEM

MOS Tech.

Processor:

65C02

Speed:

Type:

8 Bit

4.9512 MHz

ROM:

32 KB

RAM:

8 KB

Battery Type:

Not Applicable

Power Adapter:

Board Powered

Display:

Needs 8 Bit Disp.

Board Type:

Needs ext. Board

Overall Size:

Not Applicable

3.3/4x7.5/8x3/4

Options Select:

Button Select

Play Levels:

18 + Analysis

Opening Book:

500 Variations

Take Back:

All Moves

Position Setup:

Available

Position Verify:

Available

Move Analysis:

Display Info:

Available

5 ply main var.

Solve Mate:

Mate in 8

Save Game:

Available

Ponder:

Available

Search Depth:

16 ply max.

Provide Hint:

Available

Teach Mode:

Not Available

Change Sides:

Available

Active Level:

TM Level:

6

Infinite Level:

9

3

Hardware Specification

Game Features

Matchplay & Test ELO Ratings

Computer Game Rating

Rating Test

Other Computer Chess  Ratings

USCF

USCF

Spacious Mind

Human Rating

USCF

CCR 1995

CCNS 1995

Ply 1995

FIDE

USCF

2149

2140

2161

2030

2091

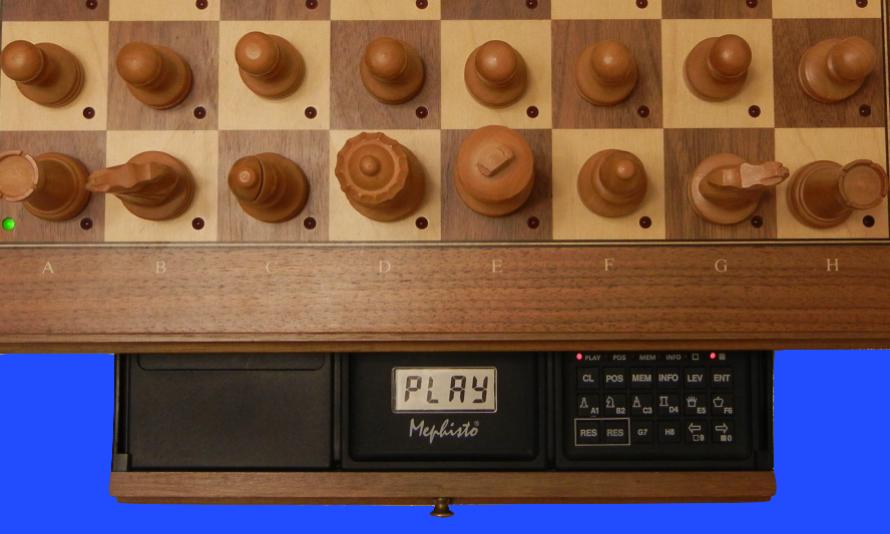

Top View of Mephisto MM V Module inside Mephisto Muenchen Modular Chess Board

Mephisto MM V (1990) Top View of Mephisto MM V Module inside Mephisto Muenchen Modular Chess Board

Expert Level Electronic Chess Module!

Board Size:

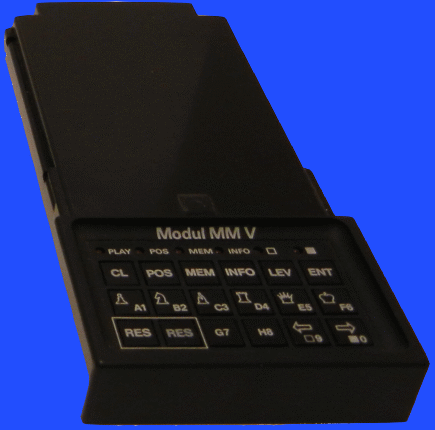

18 Key Game Module - 8 Bit 65C02 Processor

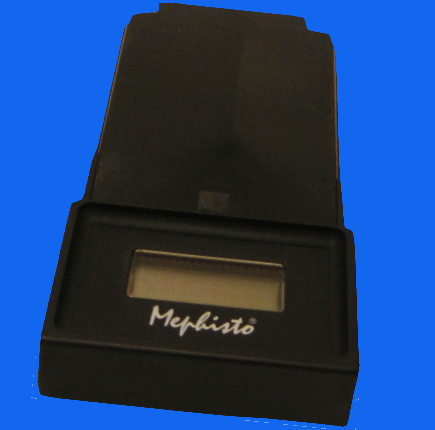

8 Bit Display Module

Mephisto MM V (1990)18 Key Game Module - 8 Bit 65C02 Processor
Mephisto MM V (1990) 8 Bit Display Module
