Mephisto MM IV (1987)

MEPHISTO MM IV uses an 8 bit 6502 microprocessor running at a speed of 4.9152 MHz with 32 KB ROM available for the program and its functions. 8 KB RAM is used for the program’s game memory. The built-in opening book comprises of approximately 500 variations. The HG 440 openings module works with the MMIV. This module increases the openings library to 23,000 half-moves (ply)in 3,000 variations.

The program was written by German programmer Ed Schroeder.

Mephisto MM IV board compatibility

Board Name

Board Type

Compatible

Bavaria

Hardwood table top

no

Exclusive

Hardwood table top

yes

Mirage

Plastic table top

no

Mobil with built-in Display

Plastic travel

yes

Mobil no Display

Plastic travel

no

Modular

Metal/Plastic table top

yes

Muenchen

Hardwood table top

yes

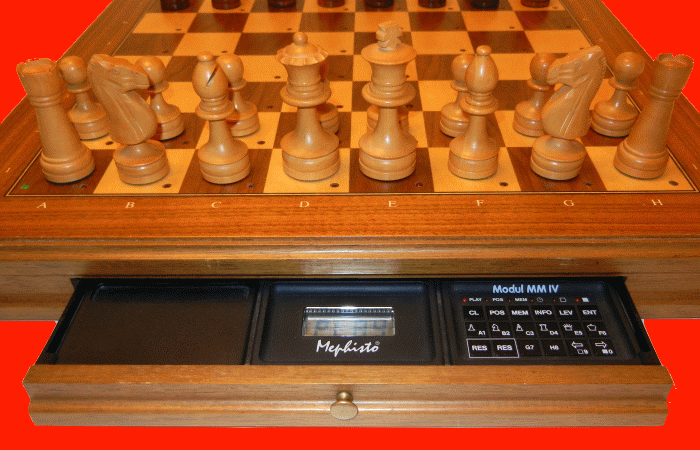

“Mephisto MM IV” chess game module playing inside a Mephisto Muenchen Auto-Sensory Board.

“Mephisto MM IV” chess game module playing inside a Mephisto Muenchen Auto-Sensory Board.

Information

Mephisto MM IV (1987)

Technical Specifications

Mephisto MM IV (1987)

Manufacturer

Programmer

Hegener + Glaser

Ed Schroeder

Year:

1987

Manufacturer ELO

?

Original Price

DM 498.00

Wiki ELO:

1904

Model #:

-

My Serial #:

0594110

Processor Type

Speed

ROM

RAM

65C02

8 Bit

4.9152 Mhz

32 KB

8 KB

Battery Operated:

N/A

Adapter Option:

9V DC (HGN 5001)

Display Type:

4 digit 7 segment LCD Display

Board Type:

Requires Mephisto Modular Series

Board Size:

N/A

Overall Size:

3.3/4” x 7.5/8” x 3/4”

Move Entry

Options Selection

Playing Levels

Opening Library

Take Back Moves

Auto Sensory

Push Buttons

25 Playing Levels

500 Opening Variations

Complete Game

Position Setup/Ver.

Display Move Info/Analysis

Solve Mate

Save Game/ Ponder

Hint/Teach Mode

Yes / Yes

Yes / Yes

Mate in 10

No / Yes

Yes / Yes

Active Level:

Level 3

Tournament Level:

Level 6

Infinite Level:

Level 9

18 Key Controls

Show Module

User Manual

Game Information

Mephisto MM IV (1987) 18 Key Controls

Mephisto MM IV (1987) Show Module

Mephisto MM IV (1987) User Manual

Famous Ed Schroeder Rebel Software inside!

Schachcomputer.Info

The Spacious Mind

Active Games (30s:1 or 60/30 etc.)

Active Games (30s:1 or 60/30 etc.)

#

W

D

L

%

ELO

#

W

D

L

%

ELO

394

149

74

171

47.2

1945

n/a

n/a

n/a

n/a

n/a

n/a

Tournament Games (180s:1 or 40/2 hrs)

Tournament Games (180s:1 or 40/2 hrs)

#

W

D

L

%

ELO

#

W

D

L

%

ELO

48

14

11

23

40.6

1993

n/a

n/a

n/a

n/a

n/a

n/a

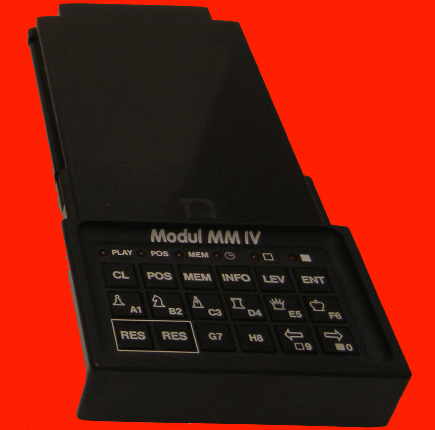

18 Key Game Module with 6502 8 Bit Processor inside

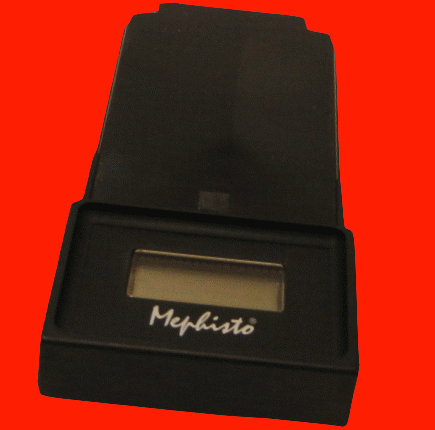

Display Module

Mephisto MM IV (1987) 18 Key Game Module with 6502 8 Bit  Processor inside

Mephisto MM IV (1987) Display Module

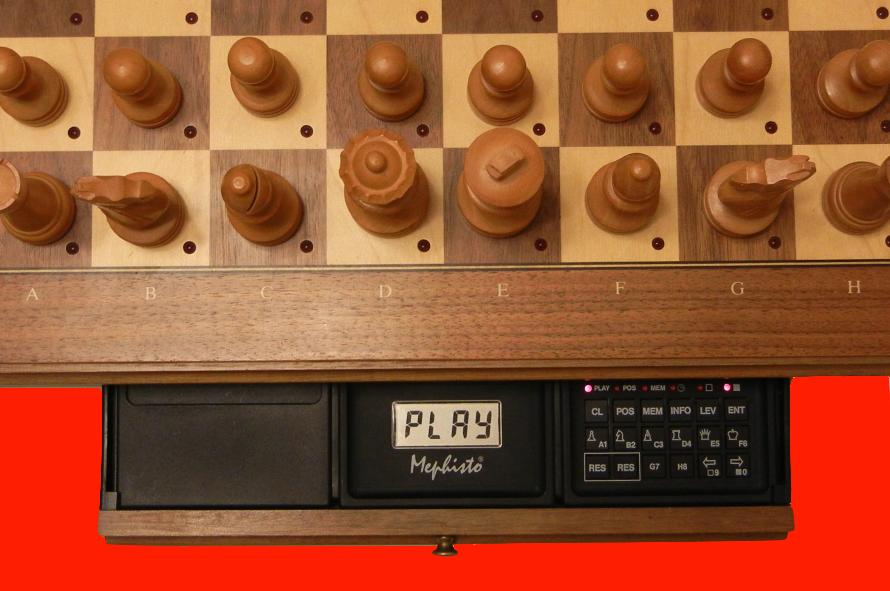

Top View of Mephisto MM IV inside Modular Chess Board

Mephisto MM IV (1987) Top View of Mephisto MM IV inside Modular Chess Board
